WARNING
Please be warned. Using these products can be extremely dangerous and can cause serious bodily harm.
You as the purchaser of the product are acknowledging the risks involved and accept full responsibility for injury and damages related to its purchase and use. You are therefore releasing our company, employees, and representatives from any and all liability related to its use.
Do not under any circumstances operate the equipment without training, eye, ear, and body protection. Do not make modifications to the equipment.
Power Hammer and Press Prices are subject to change
COPYRIGHT © 2010 ANYANG USA and JOHNSON METALSMITHING LLC - ALL RIGHTS RESERVED.
Hammer Specs
Length 62"
Width 29"
Height 80"
Die height 37"
Die length 5.25"
Die width 3.5"
Beats per min 215
Weight lbs. 3960
Motor specs
Power input 3 phase
Voltage 220V
Speed RPM 1160
Amperage 29.4
Motor HP 10
Plug Nema code L14-30P
James R. Johnson ** USAforging@gmail.com ** 940 6274529 ** 2955 CR 1370 Alvord, TX 76225
Johnson Metalsmithing LLC Follow me on Instagram: http://www.instagram.com/james_johnson_anyang_usa
Anyang USA Power Hammer and Hydraulic Press Since 1956
Latest Podcast from the Blacksmithspub
Standard Features:
Warranty:
Frame: Lifetime from AFP
Internal wearing parts: 5 year
Motor: 3 years from WEG
USA oil flow control valves
USA Electrical components (assembled and tested in my shop)
Key out design, heavier anvil mass, deeper throat
H13 dies with holes for bolt-on tooling
WEG 10 hp three-phase motor
Motor Specs: W22 NEMA Premium Efficiency 10 HP 6P 254/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted | W22 | W22 | TEFC Cast Iron | General Purpose | AC Motors - NEMA | Electric Motors | WEG - Products
Cost $15,550

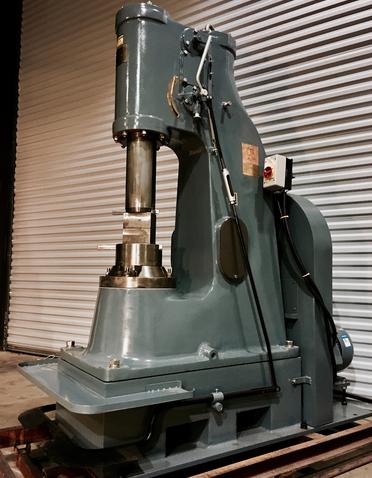

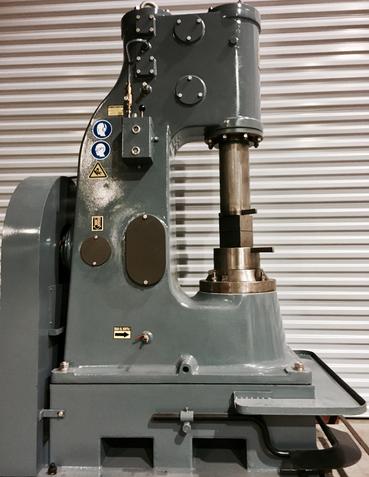

130 lb HS/ 59 KG Self Contained Power Hammer
