​​Anyang USA Power Hammer and Hydraulic Press  ​Since 1956

Latest Podcast from the Blacksmithspub

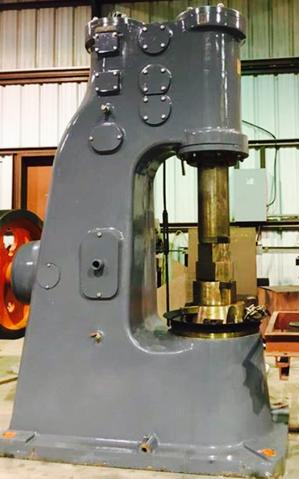

264 LB HS/ 120 KG self contained power hammer

Hammer Specs

Length                   56"

Width                    31"

​Height                91.5"

Note: for shop layout ask for foundation drawings.  Motor is mounted to the side requiring more space.

​Die height             37"

Die width            4.75"

Die length (bottom) 8"

​Die length (top)       6"

Beats per minute  190

​Weight Lbs.       7,480


Motor specs

​Electric input  3 phase

​Voltage              220V

​Speed/RPM      1160

​Amperage           54

​Motor HP            20

​Switching supplied by customer



​Standard Features:
Warranty:
Frame:  Lifetime from AFP
Internal wearing parts: 5 year
Motor: 3 year from WEG
USA oil flow control valves
H13 dies with holes for bolt-on tooling
​WEG 20 hp Three-phase motor
​Motor Specs:
W22 NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted | W22 | W22 | TEFC Cast Iron | General Purpose | AC Motors - NEMA | Electric Motors | WEG - Products
Cost $23,450 plus shipping from Tainjin CN to the closest port
