WARNING

Please be warned. Using these products can be extremely dangerous and can cause serious bodily harm.

You as the purchaser of the product are acknowledging the risks involved and accept full responsibility for injury and damages related to its purchase and use. You are therefore releasing our company, employees, and representatives from any and all liability related to its use.

Do not under any circumstances operate the equipment without training, eye, ear, and body protection.  Do not make modifications to the equipment.


Power Hammer and Press Prices are subject to change


COPYRIGHT © 2010 ANYANG USA and JOHNSON METALSMITHING LLC - ALL RIGHTS RESERVED.


​​Anyang USA Power Hammer and Hydraulic Press  ​Since 1956

Latest Podcast from the Blacksmithspub

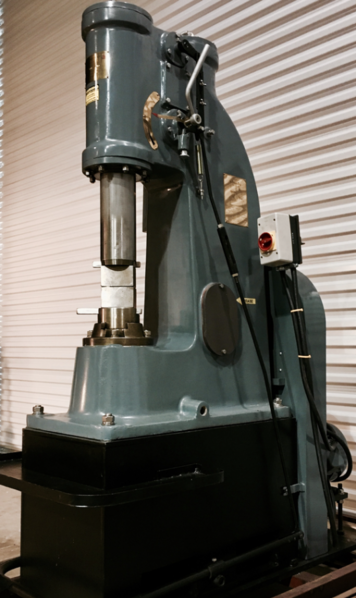

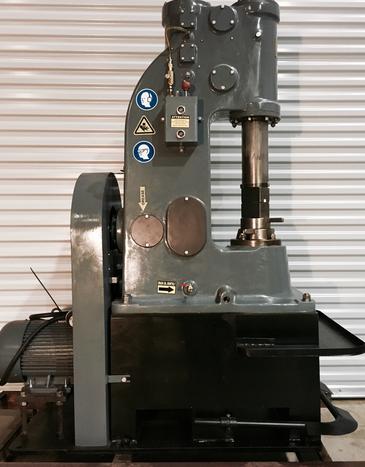

68 LB HS/ 30.85 KG Power Hammer

Standard Features:
Warranty:
Frame:  Lifetime from AFP
Internal wearing parts: 5 year

Motor: 3 year from WEG
USA oil flow control valves
USA Electrical components (assembled and tested in my shop)
Key out design, heavier anvil mass, deeper throat
H13 dies with holes for bolt-on tooling
​WEG 5 hp single phase motor

Motor specs:   General 5 HP 6P 215T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted | W21 | TEFC Cast Iron | General Purpose ODP/TEFC | AC Motors - NEMA | Electric Motors | WEG - Products


​Cost $9,450

Hammer Specifications


Length                         47"

​Width                           21"

Height                          71"

​Die height                    37"

Die Width                      2.75"

​Die length                     4"

Beats per min.            235

Weight lbs                  2355


​Motor specs

WEG High Torque

​Electrical input   single phase

Volage                      230V

Speed/RPM             1160

Amperage                  22

​Motor HP                     5

​Plug Nema code    L6-30P
