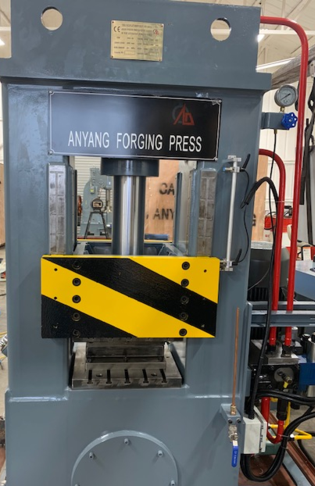

​​Anyang USA Power Hammer and Hydraulic Press  ​Since 1956

Forging Force force             25 Ton          50 Ton



Adjustable Ram stops           Yes               Yes


Ram speed down (IPS)           2.8                2.5


Work table                   7.9” by 11.8”     11.75" by 14.75"


Stroke length                        11.8”             11.8"


Base dimensions               26" by 40"      38" by 54"


Height                                   80"                 81"


Motor Specs.              4KW / 5.4 HP.     7.6KW / 10.2 HP.


Motor amperage                     24.6              28.2


Voltage/phase                      240V/1         240V/3


Weight                                   2000 lbs.    4000 lbs.


Oil Tank Size (gallons)              60                132


​Cost                             $8,950     $13,850


Specifications                  25T          50T

WARNING

Please be warned. Using these products can be extremely dangerous and can cause serious bodily harm.

You as the purchaser of the product are acknowledging the risks involved and accept full responsibility for injury and damages related to its purchase and use. You are therefore releasing our company, employees, and representatives from any and all liability related to its use.

Do not under any circumstances operate the equipment without training, eye, ear, and body protection.  Do not make modifications to the equipment.


Power Hammer and Press Prices are subject to change
